Laser Components >> Passive Q-switch Crystals
- Simple to use, no need of external driving system
- Compact setup
- Working frequency upto 10kHz

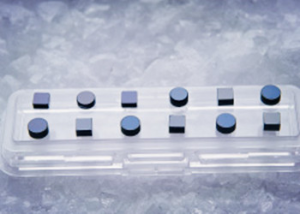

Chromium Doped Yttrium Aluminum Garnet (Cr4+:YAG) Crystal is excellent E-O material for passively Q-switching diode pumped or lamp-pumped Nd:YAG, Nd:YLF, Nd:YVO4 and other Nd (or Yb) doped lasers at 0.8~1.2µm. With the advantages of chemically stable, durable, UV resistant, good thermal conductivity, high damage threshold ( >500 MW/cm2) and easy operation, Cr4+:YAG is edging out traditional materials, such as LiF, organic Dye and color centers.
| Specifications | ||
| Dimensions range | Surface Area | 2×2 mm2~ 14×14mm2 |
| Length | 0.1mm ~ 12mm | |
| Doping Concentration | 0.03mol% ~ 0.65mol% | |
| Initial Transmission | 5% ~ 95% | |
| Flatness | < λ/10 @633nm | |
| Wavefront Distortion | < λ/6 @633nm | |
| Parallelism | < 30″ | |
| Surface Quality | 10/5 S/D (per MIL-O-13830A) | |
| AR coating | R<2% @ 1064nm or 1053nm | |
| Physical and optical Properties | |
| Chemical Formula | Cr4+:Y3A15O12 |
| Crystal Structure | Cubic Garnet |
| Density | 4.56g/cm3 |
| Hardness | 8.5 Mohs |
| Damage Threshold | > 500 MW/cm2 |
| Regractive Index | 1.82 @ 1064 nm |
