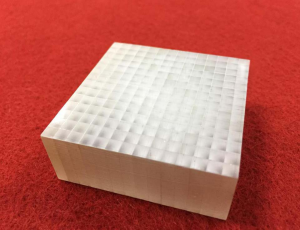

LYSO(Ce) array was fabricated into matrix configurations used in Position Emission Tomography(PET) facility, included the whole body, small animal and specific organ like brain, thyroid and breast. We design and develop pixelated LYSO(Ce) crystal in single layer array, or dual layers with depth of interaction(DOI) capability, by which the high spatial resolution can be acquired. The pixel can be small as 0.3 mm x 0.3 mm, the reflector between each pixel we used is BaSO4 or white plastic, the vikuiti Enhanced Specular Reflector(ESR) film was available upon request.
Features
- High light output
- High density and anti-radiation hardness
- Short decay time
- Stable chemical and physical properties
Application Notes
- Positron emission tomography (PET)
- Medically X-ray CT
- High energy physics
- Nuclear medicine
- Nuclear radiation scanner
Modules or types
Array size: 4 x 4, 8 x 8, 16 x 16, 23 x 23, 43 x 43 pixels(customized)
Pixel size: 1 x 1 x 10 mm, 2 x 2 x 13 mm, 3 x 3 x 15 mm, 4 x 4 x 22 mm(customized)
Gap between each pixel: ≥0.05 mm
Reflector/Separator: Barium Sulfate(BaSO4), White Plastic, vikuiti ESR film
Pixel light uniformity in arrays: <10% or customized
