Specifications:
Dimension |
Dia35mm (Excluding Pin) x 74.7mm (Length) |
Connector Type |
Pogo Pin |
Clear Aperture |
Dia11mm |
Pin Length |
13.03mm (Length) |
Crystal |
1pce of DKDP Crystal |
Quantity of Pins |
3 |
Insertion Loss |
<2%@1064nm |
Extinction Ratio |
>2500:1 |
Capacitance |
≤5pF |
|
|
DKDP Crystal Specifications |
|||
Crystal Material |
Deuterated Potassium Dihydrogen Phosphate (DKDP Crystal), 99% Deuteration |
Crystal Size |
13.6mm (Dia) x 36mm (Length) |
Coating |
S1/S2 AR Coating on DKDP Surface: Sol Gel Coating, R<0.05%@755nm, AOI 0° |
Laser Induced Damage Threshold |
10J/cm2@10ns, 1064nm, Equivalent to 2.2J/cm2 @700ps, 755nm |
Wedge |
<2 arcmin |
Electrode Coating |
3 Gold Plating |
Wedge Window Specifications |
|||
Coating |
AR Coating, R<0.05%@755nm, AOI 0° |
Laser Damage Threshold |
10J/cm2@10ns, 1064nm, Equivalent to 2.2J/cm2 @700ps, 755nm |
Wedge |
0.5° |
|
|

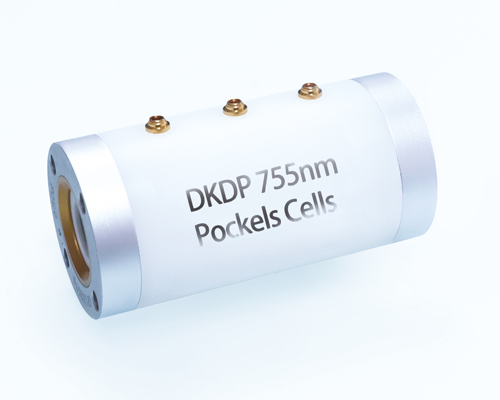

Hangzhou Shalom EO launches our new 2031-031 DKDP Pockels cell module, a module developed based on 1 pce of gold plated 99% deuteration DKDP crystals, excellent for the 755nm Alexandrite lasers. This DKDP Pockels cell module feature three Pogo connector structure, a high extinction ratio of >2500:1, and capable laser damage threshold 10J/cm2@10ns, 1064nm, Equivalent to 2.2J/cm2 @700ps, 755nm, being able to withstand the peak power of Alexandrite pulsed lasers. The DKDP crystal's anti-reflection coating on S1/S2 surfaces are Sol Gel AR coating.
