Optical Parameters:
| Focal Length | 15mm to 300mm | Calculated Average Transmission | >81% |
| F/# | 5.5 | Operating Temperature Range | -40℃ to +60℃ |
| Operating Wavelength Range | 3.7μm to 4.8μm | Minimum Focus Range | 1m/5m |
| Coating on Front Surface Exposing to Air | AR | Distortion(Diagonal FOV) | <3.5% / <1% |
Mechanical Specifications:
| Focusing Mechanism | Motorized | Installation Way | Flange |
| Weight | 650g | Back Working Distance (B.W.D) | 25.82mm |

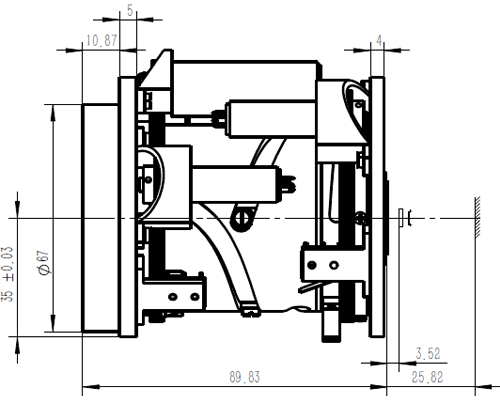

| Materials of Lens Housing | Anodized aluminium | Connector | Refer to drawing |
| Max. Dimensions (Diameter x Length) | ɸ99x89.83 | Sealing grade | IP67 |
Electronics:
| Zoom, Focus Mechanism | DC gear motor control | Zoom, Focus Position Feedback | Potentiometer |
| Zoom, Focus Driving Voltage | 12V DC |
FOV-Sensor Size:
| FOV(H X V) | 320x256 | 640x512 |
| 15μm | 35.5° to 1.83° | |
| 30μm | 35.5° to 1.83° |
