Optical Property
| Focal Length | 17mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >84% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 0.5m to infinite | Distortion (Diagonal FOV) | <2.5% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | <30g |

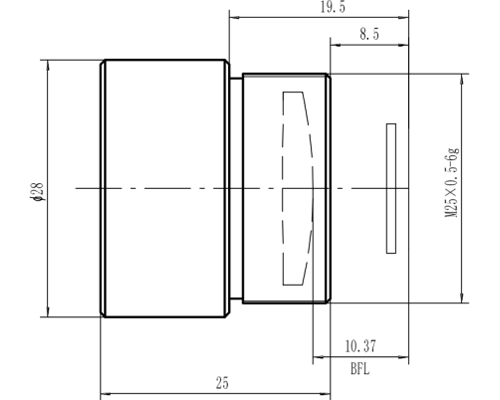

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | ɸ28x25 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 8.5mm |
| Connector | M25x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 6.5°x4.9° | 12.9°x9.7° | 15.4°x11.6° | 25.5°x19.2° | |
| 17μm | 9.1°x6.9° | 18.2°x13.7° | 21.6°x16.3° | 35.0°x26.8° | |
| 25μm | 13.4°x10.1° | 26.5°x20° | 31.2°x23.8° |
