Optical Parameters:
| Magnification | 2X | Calculated Average Transmission | 88% |
| Aperture Number | 0.48 | Operating Temperature Range | -10℃ to +50℃ |
| Operating Wavelength Range | 8μm to 12μm | Object Distance | |
| Coating on Front Surface Exposing to Air | AR | Distortion (Diagonal FOV) | <1% |
Mechanical Specifications:
| Focusing Mechanism | Fixed | Installation | Screw thread connection |
| Weight | / | Flange Focal Distance | |
| Materials of Lens Housing | Anodized aluminium | Connector | M54x1 |
| Max. Dimensions (Diameter x Length) | ɸ54x84.39 | Sealing Grade | IP54 |
| Observe Area | 336x256 | ||
| 17μm | 2.8mmx2.2mm |

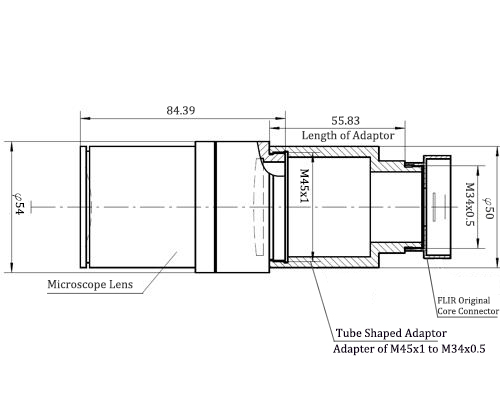

Drawing:
