Specifications:
| Type |
Plano-plano Circular Mirror |
Substrate Material |
N-BK7 Glass |
| Diameter |
6.0 (-0.05/-0.15)mm |
Thickness |
3.0 (±0.1)mm |
| Output Wavelength |
1064nm |
Angle of Incidence |
0° |
| Surface 1 Coating |
PR@1064nm, R=30%±3% |
Surface 2 Coating |
0°AOI, AR@1064nm |
| Coating Specification |
/ |
Clear Aperture |
90% |
| Radius of Curvature |
/ |
Parallelism |
10 arcsec |
| Surface Quality (After Coating) |
40/20 S/D |
Note |
/ |

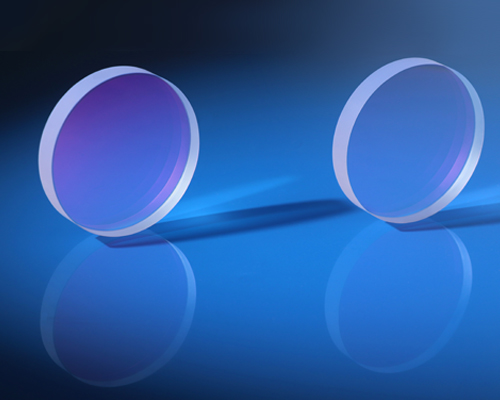

This is Shalom EO’s 127-024 output coupler. This Plano-plano Circular partially reflective laser mirror, with Dia6mmxT3mm dimension, based on dielectric coatings and N-BK7 substrates, usually placed inside the laser cavities in application, is designed for extracting 1064 nm laser beams from Nd:YAG Laser cavities and resonators. The first surface is coated with PR@1064nm, R=30%±3% PR coating, and the back surface is coated with 0°AOI, AR@1064nm. The output coupler is engineered to be used at 0° angle of incidence.
Plano-plano Circular
N-BK7
1064nm
Dia6mmxT3mm
/
PR@1064nm, R=30%±3%
0°AOI, AR@1064nm
/
Notice: Use of undefined constant gdd - assumed 'gdd' in /www/wwwroot/shalomeo.com/catalog/view/theme/shalomtpl2/template/product/product.tpl on line 697gdd
0°
Nd:YAG Laser
