Optical Property
| Focal Length |
12.8mm |
F/# |
1.0 |
| Operating Wavelength Range |
8μm to 12μm |
Coating on Front Surface Exposing to Air |
DLC |
| Calculated Average Transmission |
>92% |
Operating Temperature Range |
-40℃ to +60℃ |
| Focus Range |
0.2m to infinite |
Distortion (Diagonal FOV) |
<1% |
Mechanical Property
| Focusing Mechanism |
fixed |
Weight |
<30g |
| Materials of Lens Housing |
Anodized aluminium |

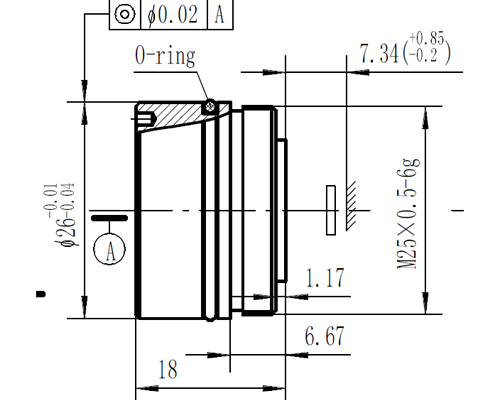

Max. Dimensions
(Diameter x Length) |
ɸ26x18 |
| Installation Way |
Screw thread connection |
Back Working Distance
(B.W.D) |
8.51mm |
| Connector |
M25x0.5-6g |
Sealing Grade |
IP67 |
| FOV(H X V) |
160x120 |
320x240 |
384x288 |
640x480 |
1024x768 |
| 12μm |
8.6°x6.4° |
17.1°x12.8° |
|
|
|
| 17μm |
|
|
|
|
|
| 25μm |
|
|
|
|
|
12.8mm
L12.8F1.0
1.0
Athermalized
