Optical Parameters:
| EFL | 13mm | F Number(#) | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Detector | 640x480-17μm |
| FOV | 45.4°x33.8°(57.8°) | External Coating | DLC |
| Average Transmittance | >88% | Working Temperature | -40°~60°(Need not to refocus) |
| Overall Optical Length | 28.77mm | BFL | 9.56mm |
| Minimum Working Distance | 0.25m | Distortion | Maximum H-FOV Distortion:7% Maximum D-FOV Distortion:11.6% |
Mechanical Parameters:
| Focusing Mechanism | fixed | Weight | <35g |

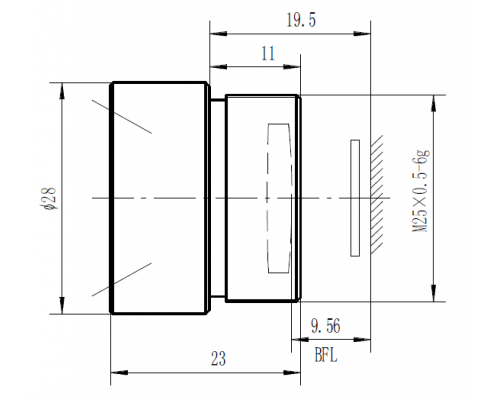

| Materials of Lens Housing | Aluminum, Black anodized | Dimensions | Length:23,Diameter:Ф28 |
| Operation Temperature | -40℃~ +60℃ | Storage Temperature | -50℃~ +80℃ |
| Mount | M25x0.6-6g | Sealing Grade | IP67 |
1.20°MTF(@291p/mm)
2.-40°MTF(@291p/mm)
3.60°MTF(@291p/mm)
4.20°Field curvature and distortion
5.Vignetting
6.Relative Illumination
