Optical Property
| Focal Length | 32mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 3m to infinite | Distortion (Diagonal FOV) | <7% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | / |

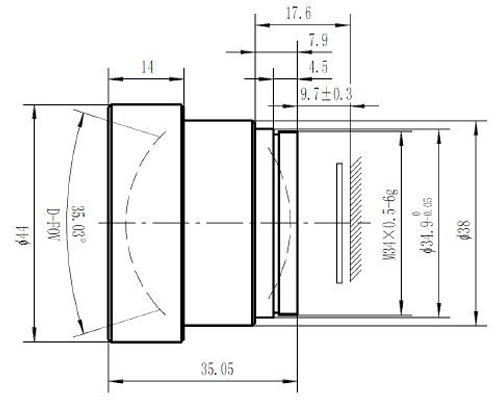

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ44x35.05 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 9.7mm |
| Connector | M34x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 3.4°x2.6° | 6.9°x5.2° | 8.2°x6.2° | 13.7°x10.3° | 21.7°x16.4° |
| 17μm | 4.9°x3.7° | 9.7°x7.3° | 11.6°x8.7° | 19.0°x14.4° | 29.2°x22.5° |
| 25μm | 7.2x5.4° | 14.3°x10.7° | 17.1°x12.8° | 28.1°x21.2° |
