Optical Property
| Focal Length | 60mm | F/# | 1.25 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 5m to infinite | Distortion (Diagonal FOV) | <5.6% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | / |

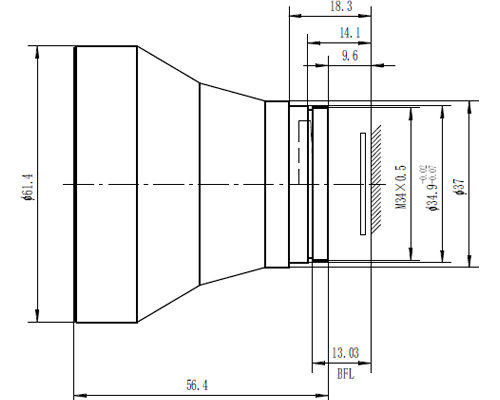

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ61.4x56.4 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 9.6mm |
| Connector | M34x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 1.8°x1.4° | 3.7°x2.7° | 4.4°x3.3° | 7.3°x5.5° | 11.7°x8.8° |
| 17μm | 2.6°x1.9° | 5.2°x3.9° | 6.2°x4.6° | 10.3°x7.7° | 16.5°x12.4° |
| 25μm | 3.8x2.9° | 7.6°x5.7° | 9.1°x6.9° | 15.2°x11.4° |
