Optical Property
| Focal Length | 95mm | F/# | 1.5 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 7m to infinite | Distortion (Diagonal FOV) | <2% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | / |

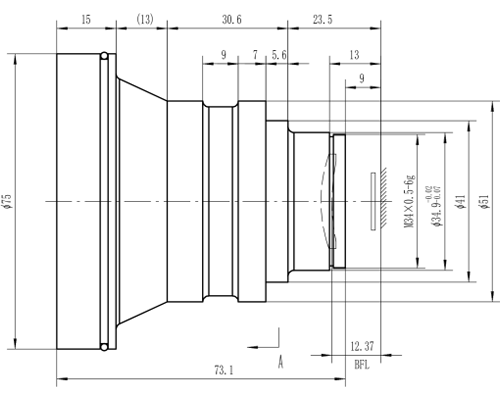

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ75x73.1 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 9mm |
| Connector | M34x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 1.2°x0.9° | 2.3°x1.7° | 2.8°x2.1° | 4.6°x3.5° | |
| 17μm | 1.6°x1.2° | 3.3°x2.5° | 3.9°x2.9° | 6.5°x4.9° | |
| 25μm | 2.4x1.8° | 4.8°x3.6° | 5.8°x4.3° |
