LWIR 90mm F1.0/275mm F1.2 Dual FOV Lenses

Code: 304-007

Inquire Us

Optical Property

Focal Length 90mm/275mm Calculated Average Transmission >84%
F/# 1.0/1.2 Operating Temperature Range -40℃ to +60℃
Operating Wavelength Range 8μm to 12μm Minimum Focus Range 5m /20m
Coating on Front Surface Exposing to Air DLC Distortion (Diagonal FOV) <1%



Mechanical Property

Focusing Mechanism Motorized Installation Way Flange
Weight / Flange Focal Distance 20mm

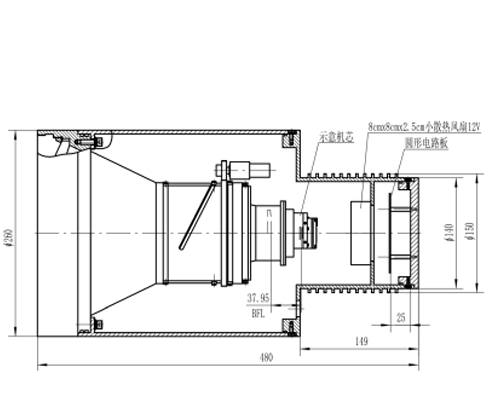

Materials of Lens Housing Anodized aluminium Connector Refer to drawing
Max. Dimensions   (Diameter x Length) ɸ260x480 Sealing Grade IP67



Electronic Property

Zoom, focus mechanism DC gear motor control Zoom, focus position feedback Encoder motor
Zoom, focus driving voltage 12V DC



FOV(H X V) 384x288 640x480
12μm 2.9° /0.96° 4.89°/1.6°
17μm 4.1° /1.3° 6.9°/2.2°
25μm 6.1° /2.0°
90mm/275mm
L-DF-90F1.0-275F1.2DualFOV
1.0/1.2
Motorized
Enquire
7-8 weeks
