Optical Parameters:
| Focal Length(f’) | 125mm | F Number(#) | 1.0 |
| Wavelength Range | 8~12 micro | Focusing Range | ∞~5M |
| FOV | 5.0°x3.7° | Coating | DLC and AR |
| Average Transmission | 80% | Working Temperature | -40℃ ~ +60℃ |
| MTF at Axis | >0.55@20lp/mm | MTF at Maximum FOV | >0.45@20lp/mm |

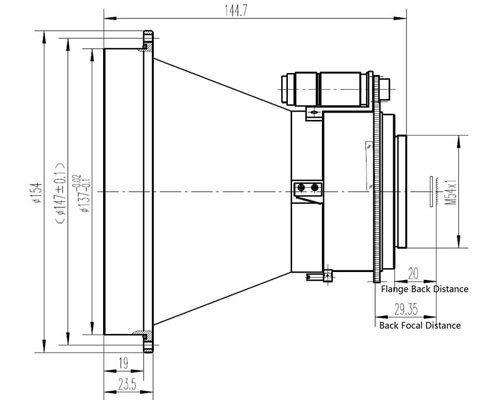

Mechanical Parameters:
| Mechanical Connection | M54x1 | Focus Mechanism | Motorized |
| Flange Back Distance | 20mm |
It is a motorized focus lens module, with a 125mm focal length and an f-number of 1.0.
