Optical Parameters:
| Focal Length | 15mm | F Number(#) | 1.0 |
| FOV(H) | 35.5°x27° | Coating | DLC or AR |
| Wavelength Range | 8~12 micro | Focus Range | ∞~0.3m |
| Working Temperature | -40℃ ~ +60℃ | Average Transmission | 80% |
| MTF at Axis | >0.55@20lp/mm | MTF at Maximum FOV | >0.45@20lp/mm |
Mechanical Parameters:
| Mechanical Connection | M34x0.75 | Focus Mechanism | Motorized |
| Flange Back Distance | 13mm |
It is a motorized lens module for LWIR thermal imaging cameras, with a focal length of 15mm and an f-number of 1.0, a wide FOV angle, and compact architecture.

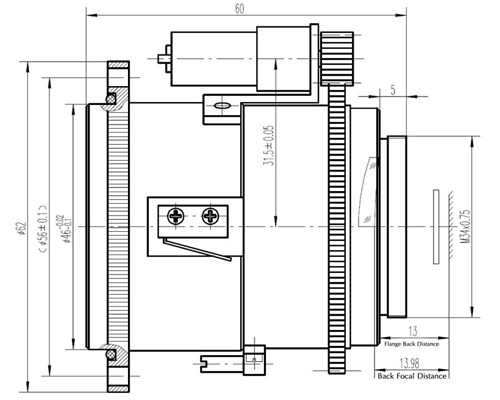

Drawing:
