Optical Parameters:
| Focal Length | 150mm | F Number(#) | 1.2 |
| FOV(HxV) | 8.2°x6.15° 5.47°x4.11° |
Detector | 1024x768-17μm 1024x768-14μm |
| Wavelength Range | 8~12 micro | Average Transmittance | >85% |
| Minimum Working Distance | 15m | Coating | DLC |
| Operation Temperature Range | -40℃~60℃ | Distortion | <0.5% |

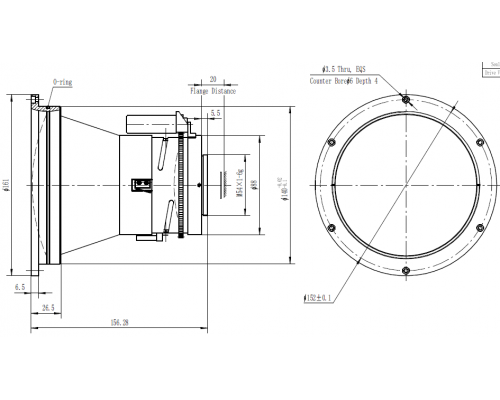

Mechanical Parameters:
| Dimensions | Length:156.28,Diameter:Ф161 | Focus Mechanism | Manual |
| Mount | M54x1-6g, Flange Distance:20mm |
Housing Material | Aluminum, Black anodized |
| Operation Temperature | -40°~ +60° | Storage Temperature | -50°~ +80° |
| Sealing | IP67 | Weight | / |
| Drive Voltage | 12V DC |

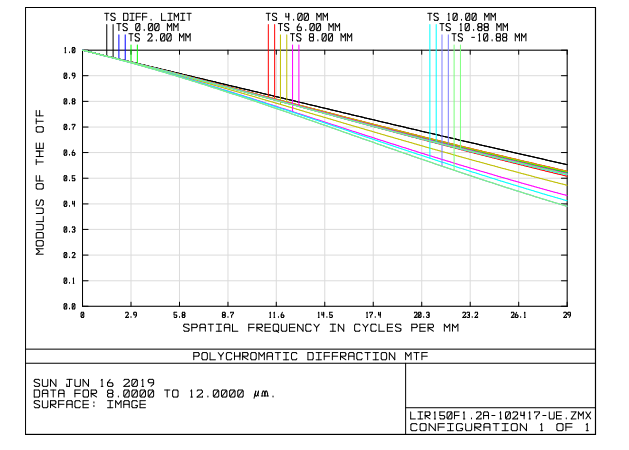

1. 20° MTF (@29lp/mm)

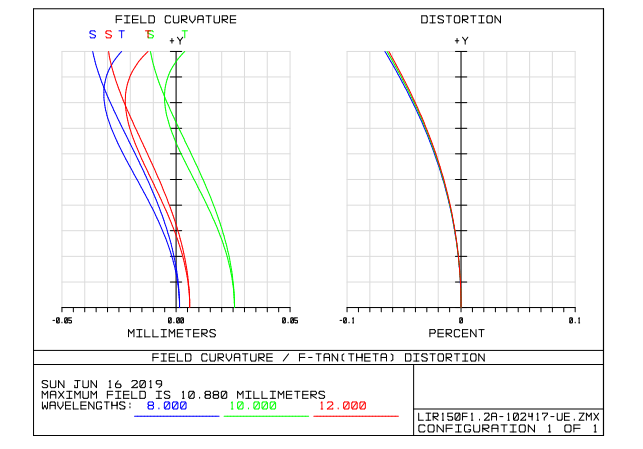

2. 20°Field Curvature and Distortion

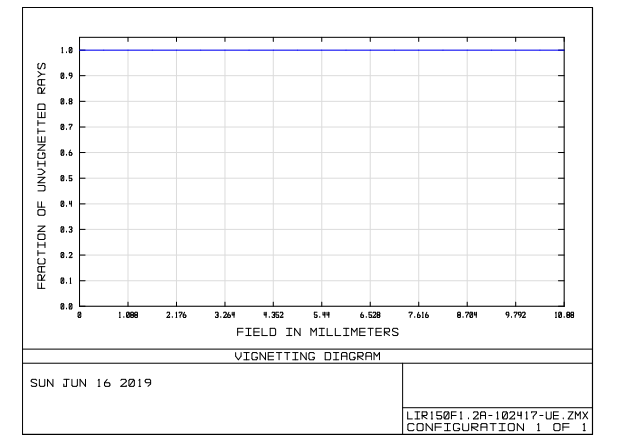

3. Vignetting

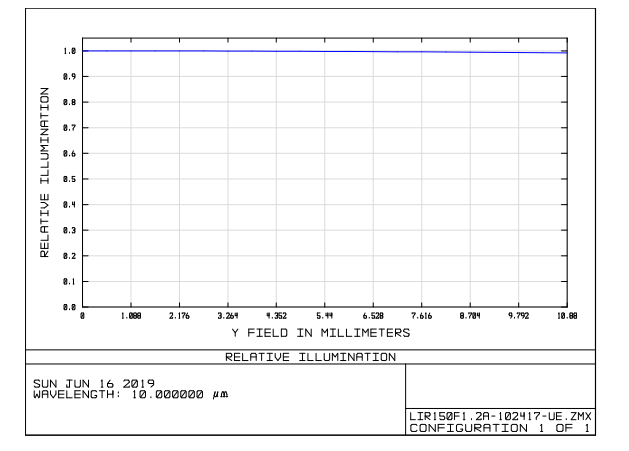

4. Relative Illumination
