| Focal Length | 40mm | F Number(#) | 0.68 |
| FOV(H) | 13.7 degree | FOV(V) | 10.3 degree |
| Wavelength Range | 8~12 micro | Focus Range | ∞~1.0m |
| Detector | 384x244-25μm |
It is a compact motorized focus lens module for LWIR thermal imaging cameras, with a focal length of 40mm and an f-number of 0.68.

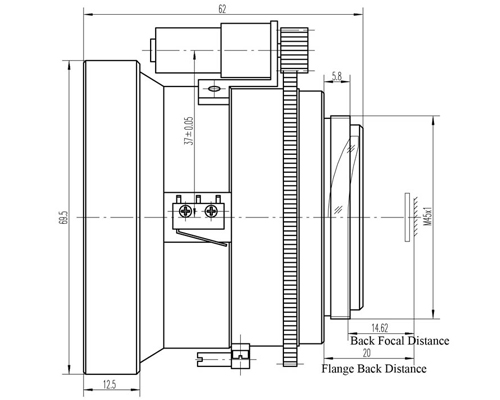

Drawing:
