Optical Parameters:
| Focal Length | 50mm | F-Number(#) | 1.0 |
| Wavelength Range | 8~12 micro | FOV | 12.4°x9.3° |
| Focus Range | ∞~3m | Coating | DLC or AR |
| Resolution | 640x480-17μm | Working Temperature | -40℃ ~ +60℃ |
| Sealing | IP54 |
Mechanical Parameters:
| Drive Voltage | 6V | Focus Mechanism | Motorized |
It is a compact motorized focus lens module, with a 50mm focal length and an f-number of 1.0.

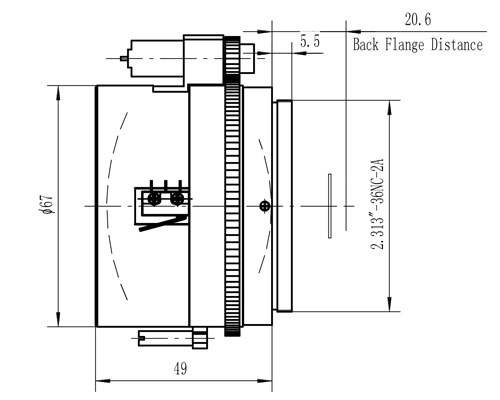

Drawing:
