Specifications:
| Focal Length | 7.5mm | F Number(#) | 1.0 |
| FOV(H) | 80.1 degree | FOV(V) | 56.3 degree |
| Wavelength Range | 8~12 micro | Focus Range | ∞~ 0.3m |
| Detector | 384x288-25μm |

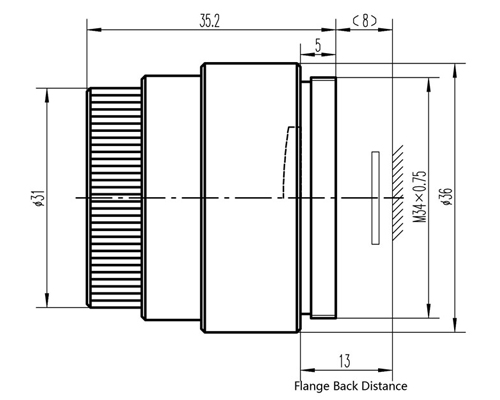

The lens module is designed for 384x288-25μm detectors, with a 7.5mm focal length and f-number of 1.0, a wide FOV angle, and compact structure.
