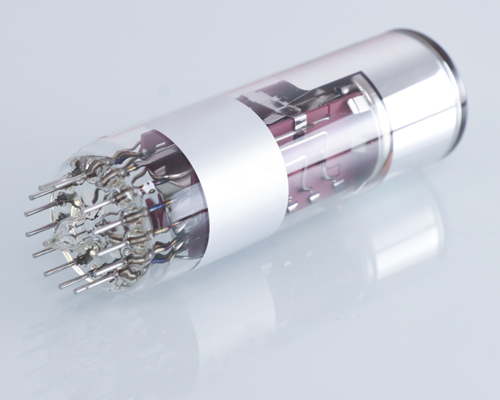

Bialkali Photomultiplier Tube, 290-650nm, Dia 25mm effective area, SPMT-T013-C

Code：SPMT-T013-C

Inquire Us

General Specifications:

Optical window	Borosilicate glass optical windows	Operating temperature range	-30°C~50°C
Photocathode	Bialkali photocathode	Storage temperature range	-50°C~50°C
Pin Base	14 pin base	Design Structure	Box-focused/linear-focused
Outline Dimension

Characteristic Specifications:

Photocathode Ative Area	Round, Min. Dia 25mm	Cathode Luminous Sensitivity	Typ. 80μA/lm
Wavelength	290-650nm, QE Peak 380nm	Cathode Blue Sensitivity	Typ. 11μA/lmf, Min. 9μA/lmf
Transit Time Spread (TTS)	Typ. 3ns	Gain	Typ. 7x10^6
Anode Sensitivity	Typ. 30A/lmf	Anode Dark Current	Typ. 2nA, Max. 10nA
Dark Count Rate	1000 Hz	Rise Time	Typ. 1.9ns

Bialkali Photomultiplier Tube, 290-650nm, Dia 25mm effective area, SPMT-T013-C

Hangzhou Shalom EO is a proffesional supplier of photomultiplier tubes. The SPMT-F021 and SPMT-T013 PMT series are pin base photomultipliers with Bialkali photocathode optimized for light detection and signal conversion of scintillation detectors.

The SPMT-F021 PMT tube series feature high gain and enhanced collection efficiencies with dia46mm active photocathode active area and box-and-grid dynode structure. While the SPMT-T013 series feature fast response and low noise excellent for scintillation counting and high energy physics applications.

290-650nm, QE Peak 380nm

28.5±0.5mm (Tube Diameter)

Max. 97±1mm

Notice: Use of undefined constant gdd - assumed 'gdd' in /www/wwwroot/shalomeo.com/catalog/view/theme/shalomtpl2/template/product/product.tpl on line 697gdd

Round, Min. Dia 25mm

Typ. 80μA/lm

Typ. 11μA/lmf, Min. 9μA/lmf

Typ. 7x10^6
