LBO Crystals

  • Stocked and custom LBO crystals are available
  • Orientations: cutting for Type I phase-matching or custom
  • Large effective SHG coefficient (3X that of KDP) and high damage threshold
  • Wide acceptance angle and small angular walk-off
  • Maximum dimension: 70x70x20mm
  • Coating options: standard AR/AR@515+1030nm or custom
Inquire for custom product
Code Size Thickness θ φ Coating Application Unit Price Delivery Cart
2113-001 6x6mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $270 4 weeks
2113-002 8x8mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $310 4 weeks
2113-003 10x10mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $350 4 weeks
2113-004 12x12mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $450 4 weeks
2113-005 15x15mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-006 20x20mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-007 22x22mm 1.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-008 6x6mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $250 4 weeks
2113-009 8x8mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $310 4 weeks
2113-010 10x10mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $400 4 weeks
2113-011 12x12mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $470 4 weeks
2113-012 15x15mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-013 20x20mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-014 22x22mm 2.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-015 6x6mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $280 4 weeks
2113-016 8x8mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $400 4 weeks
2113-017 10x10mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $520 4 weeks
2113-018 12x12mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $550 4 weeks
2113-019 15x15mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-020 20x20mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-021 22x22mm 3.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-022 6x6mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $250 4 weeks
2113-023 8x8mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $420 4 weeks
2113-024 10x10mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $540 4 weeks
2113-025 12x12mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 $580 4 weeks
2113-026 15x15mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-027 20x20mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks
2113-028 22x22mm 4.0mm θ=90° 13.8° AR/AR@515+1030nm SHG1030nm Type1 Inquire 4 weeks

Lithium Tri-borate or LBO crystals (LiB3O5) are one of the most capable nonlinear optical materials. The merits of LBO crystals are manifold, including large conversion efficiencies (the second harmonic generation/SHG coefficient of LBO crystals is 3 times the magnitude of KDP crystals), a wide transparent spectral region from 160nm to 2600nm, a high damage threshold, broad acceptance angle, and miniature angular walkoff, etc. It demonstrates superior performance in high-power second-harmonic generation (SHG), exhibiting minimal thermal lensing effects when compared to KTP. The broad acceptance angle, coupled with a small walk-off angle characteristic of lithium triborate crystals, reduces the requirement for high beam quality in input lasers. In addition, LBO crystal also boasts a broad wavelength range where non-critical phase matching (NCPM) can be achieved at room temperature.

Hangzhou Shalom EO offers off-the-shelf and custom LBO crystals optimized for femtosecond lasers. Our LBO crystals empower users with stunning excellence for the generation of ultrashort pulses with high conversion efficiencies, which translate into high output power. The crystals could be utilized for:

  • Generation of 395nm output via SHG of a mode-locked Ti:Sapphire laser, phase-matching is achieved under room temperature
  • THG of Ti:Sapphire laser
  • 532nm output gained via extra-cavity SHG of a mode-locked Nd:YAG laser with non-critical phase matching  (NCPM)
  • SHG of Yb:KGW/KYW lasers
  • More

Rigorous inspection is harnessed to ensure the parameters of crystals meet or exceed the published specifications. Advanced facilities are equipped for crystal fabrication to deliver high optical homogeneity and minimized inclusions, scatters, etc. within the crystal. Large aperture sizes with a maximum dimension of 70x70x20mm, and standard or custom coating options are available.

Common Specifications:

Materials LBO crystals Type Type 1
Cutting θ=90°±0.5°,Φ=13.8°±0.5° Flatness less than λ/8 @ 633nm
Wavefront Distortion less than λ/8 @ 633nm Surface Quality 10/5 S/D
Parallelism 20 arc second Coating AR/AR@515+1030nm
LBO Crystals 12x12x2mm for SHG of 1030nm Femto-line Lasers

LBO Crystals 12x12x2mm for SHG of 1030nm Femto-line Lasers

LBO Crystals 12x12x3mm for SHG of 1030nm Femto-line Lasers

LBO Crystals 12x12x3mm for SHG of 1030nm Femto-line Lasers

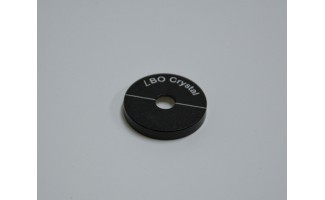

LBO Crystals 6x6x1mm for SHG of 1030nm Femto-line Lasers
