[Technical Notes] GAGG:Ce Crystals

In precision detection, selecting the appropriate scintillator material is critical to system performance. Cerium-doped Gadolinium Aluminum Gallium Garnet (Ce:GAGG) crystals are increasingly utilized in medical imaging, industrial inspection, and security screening due to their specific physical properties.

Key Characteristics of Ce:GAGG

Ce:GAGG is an advanced scintillation material that converts X-rays, gamma rays, and other ionizing radiation into visible light with a central wavelength of 530 nm.

Compared to traditional scintillators, Ce:GAGG provides the following technical advantages:

• High Light Yield & Energy Resolution: Enables the capture of weak signals and provides high-quality data for imaging.

• High Density: A density of 6.63 g/cm3 ensures efficient absorption of high-energy radiation.

• No Self-Radiation: Unlike materials such as LYSO, Ce:GAGG does not contain radioactive isotopes, eliminating background noise interference.

• Non-Hygroscopic: The material does not absorb moisture, ensuring stable performance in diverse operating environments without the need for specialized hermetic sealing.

Technical Specifications and Working Principle

The performance of Ce:GAGG is derived from its precise chemical composition: Gadolinium (49.5%), Gallium (22%), Oxygen (22.6%), Aluminum (5.7%), and Cerium (0.2%) as the dopant for efficient scintillation.

How it works:

As radiation interacts with the crystal, Ce:GAGG emits green fluorescence at 530 nm. By integrating the crystal with Photomultiplier Tubes (PMT), Silicon Photodiodes, or Silicon Photomultipliers (SiPM), these light signals are converted into electrical signals for analysis. When arranged in pixelated arrays, Ce:GAGG enables high-resolution imaging for medical or industrial non-destructive testing (NDT).

Manufacturing and Quality Control at Hangzhou Shalom EO

We maintain a standardized production process to ensure material homogeneity and adherence to technical specifications:

• Crystal Growth: Crystals are grown using the Czochralski method, ensuring a complete lattice structure and chemical uniformity.

• Precision Cutting: Materials are processed into specific dimensions according to customer requirements.

• Optical Processing: Includes end-face parallelism treatment, fine grinding, and optical-grade polishing to minimize light loss and ensure surface accuracy.

• Inspection and Packaging: Dimensions, parallelism, and surface quality are inspected against specified tolerances. Products are cleaned and packaged in a controlled environment.

Primary Application Areas

Due to its high spatial and time resolution, Ce:GAGG is implemented in the following fields:

• Medical Imaging: SPECT and CT equipment.

• Security Screening: Container inspection and high-energy X-ray security systems.

• Industrial NDT: Non-destructive testing equipment for structural integrity analysis.

• Radiation Detection: Research-grade detectors for high-energy physics.

Custom Solutions

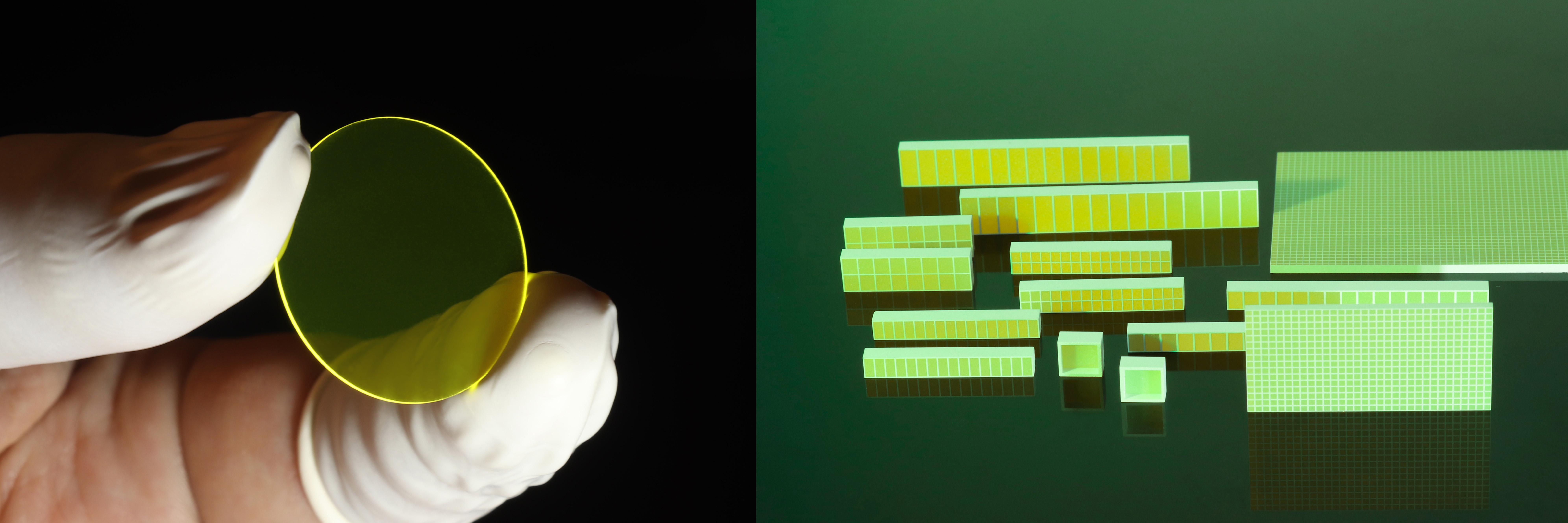

Hangzhou Shalom EO provides customized Ce:GAGG solutions, ranging from single crystal components to complex pixelated arrays, tailored to your specific application requirements.
