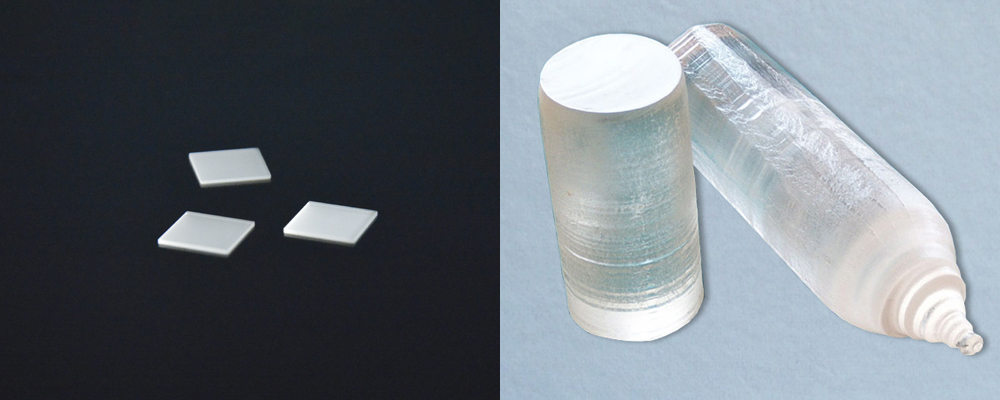

[Technical Notes] GGG: Gadolinium Gallium Garnet Substrates

Gadolinium Gallium Garnet (Gd₃Ga₅O₁₂ or GGG) is a synthetic single-crystal material primarily utilized as a substrate for epitaxial thin-film growth. Due to its stable lattice structure and high chemical resistance, GGG serves as a critical platform in the fabrication of magneto-optical and microwave devices.

Physical and Chemical Properties

The utility of GGG as a substrate is defined by its specific physicochemical characteristics:

• Lattice Matching: With a lattice constant of approximately 12.383 Å, GGG provides an excellent match for various functional films, including magnetic garnets (e.g., YIG), ferroelectric, and superconducting thin films. This minimizes interfacial stress and improves crystalline quality.

• High Crystalline Perfection: Produced via the Czochralski method, GGG crystals exhibit extremely low defect densities, which is essential for the growth of high-quality epitaxial layers.

• Chemical and Thermal Stability: GGG is chemically inert and resistant to most acids and bases. Its high melting point (approx. 1750 °C) ensures structural integrity during high-temperature deposition processes.

• Optical Transparency: Post-polishing, GGG substrates demonstrate high transmittance in the visible and near-infrared (NIR) spectral regions, making them suitable for optical windows and laser components.

• Mechanical Durability: With high hardness and wear resistance, GGG can withstand significant mechanical stress during processing and device integration.

Technical Specifications

Parameter	Value / Description
Chemical Formula	Gd₃Ga₅O₁₂
Lattice Constant	≈ 12.383 Å
Density	7.08 g/cm³
Melting Point	≈ 1750 °C
Surface Roughness (Ra)	Nanometer-level (via CMP)
Polishing	Single-sided (SSP) or Double-sided (DSP)

Working Principle: Substrate for Epitaxial Growth

GGG crystals function as a template for the epitaxial growth of functional thin films, such as ferroelectric or magnetic layers. These films (ranging from tens of nanometers to several micrometers) are deposited onto the GGG substrate to create devices like piezoelectric sensors, RF filters, and Ferroelectric Random-Access Memory (FRAM).

The properties of the GGG substrate—specifically its thermal stability and lattice matching—directly influence the crystal structure, phase composition, and electrical characteristics of the deposited films. By minimizing lattice mismatch, GGG reduces the strain generated during deposition, ensuring the longevity and reliability of the final electronic or optical device.

Manufacturing and Processing

At Shalom EO, GGG substrates undergo a standardized fabrication sequence to meet atomic-level flatness requirements:

• Crystal Growth: High-purity Gd2O3 and Ga2O3 are reacted and pulled using the Czochralski (CZ) method to form high-purity single crystals.

• Orientation and Cutting: Crystal rods are verified via X-ray Diffraction (XRD) for precise orientation—such as (100), (110), or (111)—and sliced into wafers using high-precision multi-wire saws.

• Lapping and Polishing: Wafers undergo multi-stage grinding, followed by Chemical-Mechanical Polishing (CMP) to eliminate subsurface damage and achieve nanometer-scale surface roughness.

• Cleaning and Metrology: Substrates are cleaned via ultrasonic and chemical processes. Final inspection includes Atomic Force Microscopy (AFM) for surface roughness assessment and dimensional calibration.

Primary Application Areas

• Magneto-Optics: Substrates for YIG or BIG films used in optical isolators and modulators for laser systems and fiber communications.

• Microelectronics & Microwave: Support for ferroelectric thin films in RF filters and tunable microwave devices.

• Semiconductors: Growth of oxide and superconducting thin films (e.g., YBCO).

• Optical Components: High-durability optical windows and lenses for visible and NIR applications.

Customization and Inquiry

Shalom EO offers GGG substrates in various orientations and dimensions, customized to your specific thin-film growth requirements.
